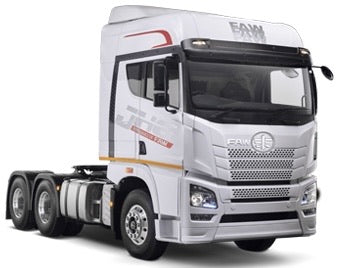

FAW JH6 28.500FT Truck Tractor

FAW JH6 28.500FT Truck Tractor

R 1,779,000.00 ZAR
R 1,779,000.00 ZAR
Sold out

FAW JH6 28.500FT Truck Tractor

Pricing

Truck Tractor R 1 779 000 excl. VAT

Warranty & Service

Warranty 3 Years / 300 000 km
Service Plan Optional



Technical Specs



Engine

Make & Model: CA6DM3-50E5
Capacity: 1 252 cm33
Layout & Type: 6 cylinder in line, water cooled, turbo charged & intercooled
Power @ r/min (kW): 370 @ 1 800rpm
Torque @ r/min (Nm): 2 300 @ 1 400

Transmission

Make & Model: FAW ZF12TX2421TD
Type: 12 Speed AMT with Intarder
Forward Ratios: 16.68, 12.92, 9.92, 7.68, 5.89, 4.56, 3.65, 2.83, 2.17, 1.68, 1.20, 1.00
Reverse Ratio: 15.5, 3.4

Mass Data

Gross Vehicle Mass (GVM): 28 000
Gross Combination Mass (GCM): 62 200
Front Axle Mass (GA Front): 7 700
Rear Axle Mass (GAU Rear): 20 300
Gross Vehicle Mass (V): 25 700
Gross Combination Mass (D/T): 56 000
Front Axle Mass (A Front): 7 700
Rear Axle Mass (A Rear): 18 000
Unladen Front Axle Mass (T Front): 5 330
Unladen Rear Axle Mass (T Rear): 3 920
Unladen Mass Total (Tare): 9 250

Fuel Tank

Number: One
Total Capacity: 500+500 Litre

Dimensions

Wheelbase (WB): 3 300 + 1 350
Overall Length (OL): 6 895
Cab Length (A): 2 646
Overall Width (OW): 2 495
Overall Height (OH): 3 910
Front Overhang (D): 1 495
Rear Overhang (ROH): 750
Cab to Rear Axle (CA): 4 152
Minimum Turning Radius: 7 500
Minimum Turning Diameter: 15 000
Ground Clearance: 295
Track - Front: 2 042
Track - Rear: 1 850
Chassis Outer Width: 800
Chassis Inner Width: 640

Cab

Cab Control: Forward Tilt Cab
Seating: Driver + 1 Passenger
Type/Extras: Sleeper Cab with Aircon, Radio with USB, Suspension seat

Steering

Gear Ratio: 23:1
Type: Recirculating Ball
Operation: Hydraulic Power Steering

Clutch

Diameter: 430 mm
Type: Dry Type Single Plate
Operation: Air Assisted

Axles

Front Axle: I-section Beam (forged steel)
Rear Axle - Gearing Type: Full Floating- Single Reduction
Rear Axle Ratio: 3.077

Brakes

System Type: Full Air - Dual Circuit with ABS
Park/Emergency System: Spring Brake/Rear Booster
Auxiliary Braking: Engine Brake, Intarder

Performance

Gradeability @ V: Max 36%
Permissible Road Speed 8: 80 km/h
