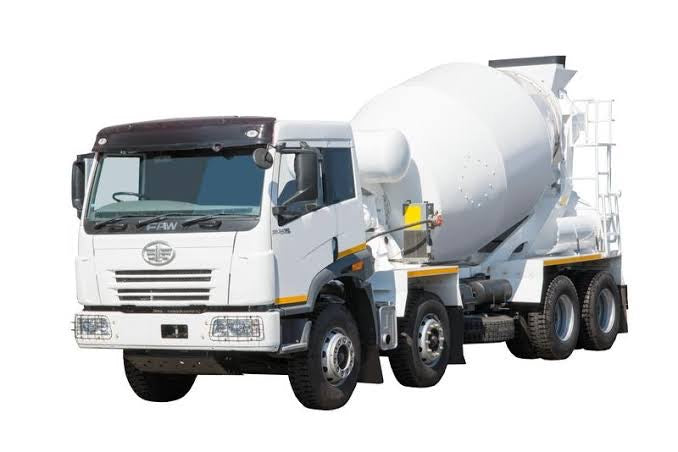

FAW J5N 35.340FC Mixer (8 Cube)

Pricing

Mixer R 1 299 000 excl. VAT

Warranty & Service

Warranty 3 Years / 300 000 km
Service Plan Optional



Technical Specs



Engine

Make & Model: Weichai WD 615.69
Capacity: 9 728 cm3
Layout & Type: 6 Cylinder in line, Water Cooled, Turbo Charged & Intercooled
Emissions Standard: Euro II
Power @ r/min (kW): 250 @ 2 200
Torque @ r/min (Nm): 1 350 @ 1 100 - 1 600

Transmission

Make & Model: FAW CA9T B160M
Type: 9 Speed Manual Syncromesh, Hi/Lo Range Split
Forward Ratios: 12.11, 8.08, 5.96, 4.42, 3.36, 2.41, 1.77, 1.32, 1.0
Reverse Ratio: 12.66

Mass Data

Gross Vehicle Mass (GVM): 35 000
Gross Combination Mass (GCM): 45 000
Front Axle Mass (GA Front): 15 400
Rear Axle Mass (GAU Rear): 19 600
Gross Vehicle Mass (V): 33 600
Gross Combination Mass (D/T): 45 000
Front Axle Mass (A Front): 15 600
Rear Axle Mass (A Rear): 18 000
Unladen Front Axle Mass (T Front): 7 180
Unladen Rear Axle Mass (T Rear): 7 020
Unladen Mass Total (Tare): 14 200

Fuel Tank

Number: One
Total Capacity: 400 Litre

Dimensions

Wheelbase (WB): 2 000 + 2 400 + 1 350
Overall Length (OL): 9 018
Cab Length (A): 2 100
Overall Width (OW): 2 495
Overall Height (OH): 2 960
Front Overhang (D): 1 418
Rear Overhang (ROH): 1 665
Cab to Rear Axle (CA): 5 393
Minimum Cab Clearance: 150
Minimum Turning Radius: 10 500
Minimum Turning Diameter: 21 000
Ground Clearance: 230
Track - Front: 2 020
Track - Rear: 1 830
Chassis Outer Width: 800
Chassis Inner Width: 640

Cab

Cab Control: Forward Tilt Cab
Seating: Driver + 1 Passenger
Type/Extras: Semi Sleeper with Aircon, Radio with USB, Suspension Seat

Steering

Gear Ratio: 20.48:1
Type: Recirculating Ball
Operation: Power Assisted

Clutch

Diameter: 430 mm
Type: Single Plate
Operation: Hydraulic-Air Assisted

Axles

Front Axle: I-section Beam (forged steel)
Rear Axle - Gearing Type: Full Floating - Single Reduction
Rear Axle Ratio: 4.875:1

Brakes

System Type: Full Air - Dual Circuit
Park/Emergency System: Spring Brakes/Rear Booster

Performance

Gradeability @ V: Max 36%
Geared Road Speed: 93 km/h
