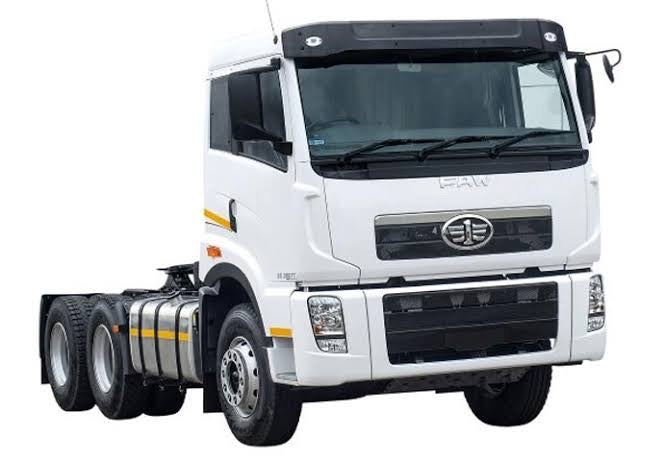

FAW J5N 28.380FT 6x4 Truck Tractor

FAW J5N 28.380FT 6x4 Truck Tractor

R 949,000.00 ZAR
R 949,000.00 ZAR
Sold out

FAW J5N 28.380FT 6x4 Truck Tractor

Pricing

Truck Tractor R 949 000 excl. VAT

Warranty & Service

Warranty 3 Years / 300 000 km
Service Plan Optional



Technical Specs



Engine

Make & Model: WEICHAI WD 615.38
Capacity: 9 726 cm3
Layout & Type: 6 Cylinder in line, Water Cooled, Turbo Charged & Intercooled
Emissions Standard: Euro II
Power @ r/min (kW): 280 @ 2 200
Torque @ r/min (Nm): 1 460 @ 1 400 - 1 600

Transmission

Make & Model: FAW CA9T B160M
Type: 9 Speed Manual Syncromesh, Hi/Lo Range Split
Forward Ratios: 12.11, 8.08, 5.96, 4.42, 3.36, 2.41, 1.77, 1.32, 1.0
Reverse Ratio: 12.66

Mass Data

Gross Vehicle Mass (GVM): 33 700
Gross Combination Mass (GCM): 62 200
Front Axle Mass (GA Front): 7 700
Rear Axle Mass (GAU Rear): 26 000
Gross Vehicle Mass (V): 25 500
Gross Combination Mass (D/T): 56 000
Front Axle Mass (A Front): 7 500
Rear Axle Mass (A Rear): 18 000
Unladen Front Axle Mass (T Front): 4 250
Unladen Rear Axle Mass (T Rear): 4 500
Unladen Mass Total (Tare): 8 750

Fuel Tank

Number: One
Total Capacity: 400 Litre

Dimensions

Wheelbase (WB): 3 975
Overall Length (OL): 6 888
Cab Length (A): 2 100
Overall Width (OW): 2 490
Overall Height (OH): 2 960
Front Overhang (D): 1 418
Rear Overhang (ROH): 1 495
Cab to Rear Axle (CA): 4 160
Minimum Cab Clearance: 150
Minimum Turning Radius: 7 700
Minimum Turning Diameter: 15 400
Ground Clearance: 230
Track - Front: 2 020
Track - Rear: 1 830
Chassis Outer Width: 800
Chassis Inner Width: 640

Cab

Cab Control: Forward Tilt Cab
Seating: Driver + 1 Passenger
Type/Extras: Semi Sleeper with Aircon, Radio with USB, Suspension Seat

Steering

Gear Ratio: 22.22:1
Type: Recirculating Ball
Operation: Power Assisted

Clutch

Diameter: 430 mm
Type: Single Plate
Operation: Hydraulic-Air Assisted

Axles

Front Axle: I-section Beam (forged steel)
Rear Axle - Gearing Type: Full Floating - Single Reduction
Rear Axle Ratio: 4.111:1

Brakes

System Type: Full Air - Dual Circuit
Park/Emergency System: Spring Brakes/Rear Booster

Performance

Gradeability @ V: Max 30%
Geared Road Speed: 105 km/h
