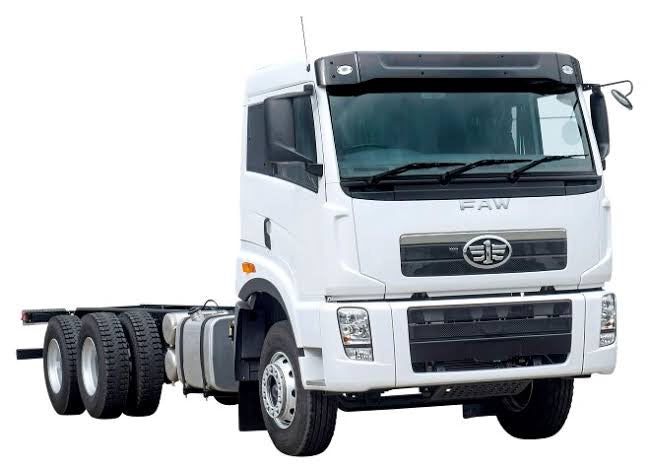

FAW J5N 28.290FL Chassis Cab (13.5 Ton)
- Regular price
- R 929,000.00 ZAR
- Sale price
- R 929,000.00 ZAR
- Regular price
-
- Unit price
- /per
Sale
Sold out
Adding product to your cart
FAW J5N 28.290FL Chassis Cab (13.5 Ton)
Pricing
| Chassis Cab | R 929 000 excl. VAT |
Warranty & Service
| Warranty | 3 Years / 300 000 km |
| Service Plan | (Optional) |
Technical Specs
Engine
| Make & Model: | WP10.340E32 |
| Capacity: | 9 726 cm3 |
| Layout & Type: | 6 Cylinder in line, Water Cooled, Turbo Charged & Intercooled |
| Power @ r/min (kW): | 213 @ 2 200 |
| Torque @ r/min (Nm): | 1 160 @ 1 600 – 2 700 |
Transmission
| Make & Model: | FAW CA9TB160M |
| Type: | 9 Speed Manual Syncromesh |
| Forward Ratios: | 14.34; 10.04; 7.10; 5.05; 3.71; 2.70; 1.92; 1.36; 1.0 |
| Reverse Ratio: | 8,63 |
Mass Data
| Gross Vehicle Mass (GVM): | 28 000 |
| Gross Combination Mass (GCM): | 50 000 |
| Front Axle Mass (GA Front): | 7 700 |
| Rear Axle Mass (GAU Rear): | 20 300 |
| Gross Vehicle Mass (V): | 25 500 |
| Gross Combination Mass (D/T): | 50 000 |
| Front Axle Mass (A Front): | 7 500 |
| Rear Axle Mass (A Rear): | 18 000 |
| Unladen Front Axle Mass (T Front): | 4 184 |
| Unladen Rear Axle Mass (T Rear): | 4 394 |
| Unladen Mass Total (Tare): | 8 578 |
Fuel Tank
| Number: | One |
| Total Capacity: | 400 Litre |
Dimensions
| Wheelbase (WB): | 5 775 |
| Overall Length (OL): | 9 825 |
| Cab Length (A): | 1 900 |
| Overall Width (OW): | 2 500 |
| Overall Height (OH): | 2 900 |
| Front Overhang (D): | 1 375 |
| Rear Overhang (ROH): | 2 000 |
| Cab to Rear Axle (CA): | 7 825 |
| Minimum Cab Clearance: | 550 |
| Minimum Turning Radius: | 20 000 |
| Minimum Turning Diameter: | 10 000 |
| Ground Clearance: | 300 |
| Track - Front: | 2 050 |
| Track - Rear: | 1 847 |
| Chassis Outer Width: | 865 |
| Chassis Inner Width: | 840 |
Cab
| Cab Control: | Forward Tilt Cab |
| Seating: | Driver + 2 Passengers |
| Type/Extras: | Sleeper Cab with Aircon, Radio with USB |
Steering
| Gear Ratio: | 23:1 |
| Type: | Recirculating Ball |
| Operation: | Power Assisted |
Clutch
| Diameter: | 430 mm |
| Type: | Single Plate |
| Operation: | Hydraulic-Air Assisted |
Axles
| Front Axle: | I-section Beam (forged steel) |
| Rear Axle - Gearing Type: | Single Reduction |
| Rear Axle Ratio: | 4.1:1 |
Brakes
| System Type: | Full Air - Dual Circuit |
| Park/Emergency System: | Spring Brakes/Rear Booster |
Performance
| Gradeability @ V: | Max 27% |
| Geared Road Speed: | 98km/h |
