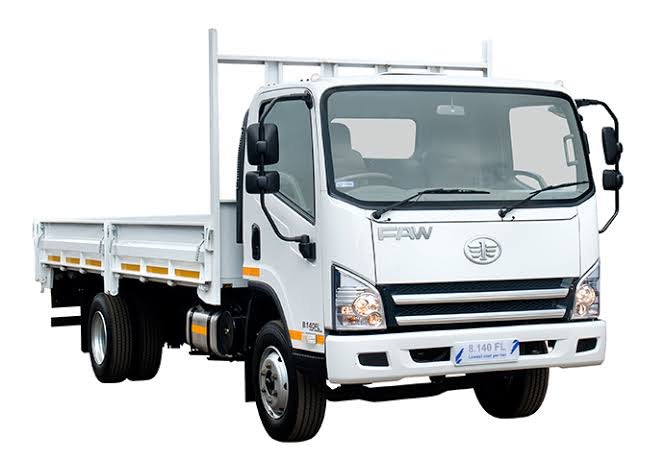

FAW 8.140 Chassis Cab (5 Ton)

FAW 8.140 Chassis Cab (5 Ton)

R 315,000.00 ZAR
R 315,000.00 ZAR
Sold out

FAW 8.140 Chassis Cab (5 Ton)

Pricing

Chassis Cab R 315 000 excl. VAT

Warranty & Service

Warranty 2 Years / Unlimited km
Service Plan 3 Years / 180 000 km (Optional)



Technical Specs



Engine

Make & Model: Cummins ISF 3.8s3141
Capacity: 3 760 cm3
Layout & Type: 4 cylinder in line, water cooled, turbo charged & intercooled
Emissions Standard: Euro III
Power @ r/min (kW): 105 @ 2 600
Torque @ r/min (Nm): 450 @ 1 200 - 2 200

Transmission

Make & Model: ZF 6S500
Type: 6 Speed Manual Syncromesh
Forward Ratios: 6.198, 3.287, 2.025, 1.371, 1.00, 0.78
Reverse Ratio: 5.681

Mass Data

Gross Vehicle Mass (GVM): 8 999
Gross Combination Mass (GCM): 14 000
Front Axle Mass (GA Front): 3 000
Rear Axle Mass (GAU Rear): 6 000
Gross Vehicle Mass (V): 8 999
Gross Combination Mass (D/T): 14 000
Front Axle Mass (A Front): 3 000
Rear Axle Mass (A Rear): 6 000
Unladen Front Axle Mass (T Front): 1 780
Unladen Rear Axle Mass (T Rear): 1 200
Unladen Mass Total (Tare): 2 980
Body and Payload Allowance: 6 019

Fuel Tank

Number: One
Total Capacity: 130 Litre

Dimensions

Wheelbase (WB): 3 860
Overall Length (OL): 6 810
Cab Length (A): 1 650
Overall Width (OW): 2 038
Overall Height (OH): 2 385
Front Overhang (D): 1 150
Rear Overhang (ROH): 1 800
Cab to Rear Axle (CA): 3 360
Minimum Cab Clearance: 100
Minimum Turning Radius: 7 100
Minimum Turning Diameter: 14 200
Ground Clearance: 200
Track - Front: 1 650
Track - Rear: 1 540
Chassis Outer Width: 795
Chassis Inner Width: 645

Cab

Cab Control: Forward Tilt Cab
Seating: Driver + 2 Passengers
Type/Extras: Day Cab, Aircon, Radio with USB

Steering

Gear Ratio: 17.76:1
Type: Recirculating Ball
Operation: Power Assisted

Clutch

Diameter: 350 mm
Type: Single Plate
Operation: Hydraulic-Air Assisted

Axles

Front Axle: I-section Beam (forged steel)
Rear Axle - Gearing Type: Full Floating - Single Reduction
Rear Axle Ratio: 4.33:1

Brakes

System Type: Full Air - Dual Circuit with ABS
Park/Emergency System: Spring Brakes/Rear Booster

Performance

Gradeability @ V: Max 29%
Geared Road Speed: 120 km/h
