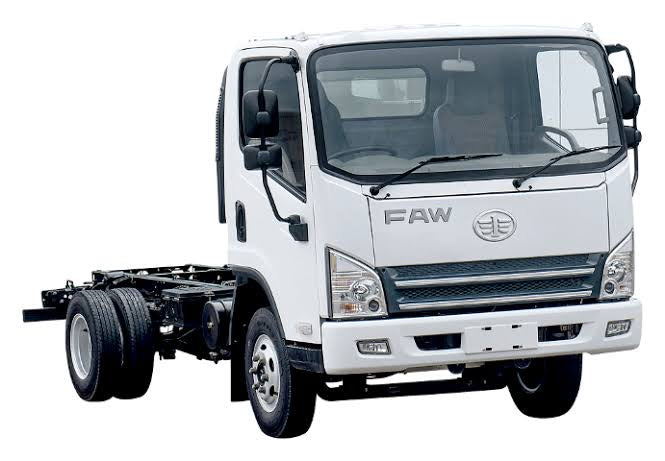

FAW 6.130 Chassis Cab (3.5 Ton)

FAW 6.130 Chassis Cab (3.5 Ton)

R 269,000.00 ZAR
R 269,000.00 ZAR
Sold out

FAW 6.130 Chassis Cab (3.5 Ton)

Pricing

Chassis Cab R 269 000 excl. VAT

Warranty & Service

Warranty 2 Years / Unlimited km
Service Plan 3 Years / 180 000 km (Optional)



Technical Specs



Engine

Make & Model: Cummins ISF 2.8s3129T
Capacity: 2 780 cm3
Layout & Type: 4 Cylinder in line, Water Cooled, Turbo Charged & Intercooled
Power @ r/min (kW): 96 @ 3 200
Torque @ r/min (Nm):  310 @ 1 600 – 2 700

Transmission

Make & Model: WLY6TS40
Type: 6 Speed Manual Syncromesh
Forward Ratios: 6.143, 3.361, 2.105, 1.341, 1.0, 0.79
Reverse Ratio: 5,571

Mass Data

Gross Vehicle Mass (GVM): 10 000
Gross Combination Mass (GCM): 50 000
Front Axle Mass (GA Front): 2 500
Rear Axle Mass (GAU Rear): 4 500
Permissible Gross Vehicle Mass (V): 6 999
Permissible Gross Combination Mass (D/T): 10 000
Permissible Front Axle Mass (A Front): 2 500
Permissible Rear Axle Mass (A Rear): 4 500
Unladen Front Axle Mass (T Front): 1 500
Unladen Rear Axle Mass (T Rear): 820
Unladen Mass Total (Tare): 2 320

Fuel Tank

Number: One
Total Capacity: 110 Litre

Dimensions

Wheelbase (WB): 3 300
Overall Length (OL): 5 850
Cab Length (A): 1 655
Overall Width (OW): 2 010
Overall Height (OH): 2 335
Front Overhang (D): 1 150
Rear Overhang (ROH): 1 400
Cab to Rear Axle (CA): 2 795
Minimum Cab Clearance: 100
Minimum Turning Radius: 6 500
Minimum Turning Diameter: 13 000
Ground Clearance: 200
Track - Front: 1 635
Track - Rear: 1 525
Chassis Outer Width: 795

Cab

Cab Control: Forward Tilt Cab
Seating: Driver + 2 Passengers
Type/Extras: Day Cab with Aircon, Radio with USB

Steering

Gear Ratio: 17.76:1
Type: Recirculating Ball
Operation: Power Assisted

Clutch

Diameter: 300 mm
Type: Single Plate
Operation: Hydraulic-Air Assisted

Axles

Front Axle: I-section Beam (forged steel)
Rear Axle - Gearing Type: Full Floating – Single Reduction
Rear Axle Ratio: 4.875:1

Brakes

System Type: Hydraulic – Dual Circuit with ABS -vacuum, hydraulic with wheel cylinder
Park/Emergency System:  Rear of transmission – drum type with linings and cable

Performance

Gradeability @ V: Max 30%
Geared Road Speed: 100km/h
