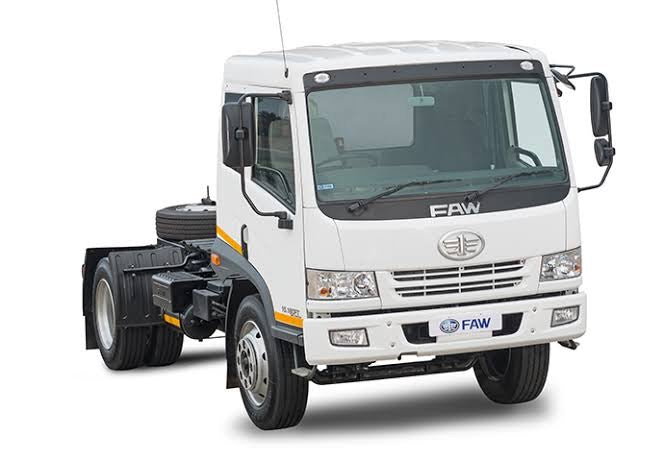

FAW 15.180FT 4x2 Truck Tractor

FAW 15.180FT 4x2 Truck Tractor

R 425,000.00 ZAR
R 425,000.00 ZAR
Sold out

FAW 15.180FT 4x2 Truck Tractor

Pricing

Chassis Cab R 425 000 excl. VAT

Warranty & Service

Warranty 2 Years / Unlimited km
Service Plan 3 Years / 180 000 km



Technical Specs



Engine

Make & Model: FAW CA6DF2-18
Capacity: 6 557 cm3
Layout & Type: 6 cylinder in line, water cooled, turbo charged & intercooled
Emissions Standard: Euro II
Power @ r/min (kW): 132 @ 2 300
Torque @ r/min (Nm): 650 @ 1 350 - 1 600

Transmission

Make & Model: FAW CA6TBX085
Type: 6 Speed Manual Syncromesh
Forward Ratios: 7.285, 4.193, 2.485, 1.563, 1.00, 0.820
Reverse Ratio: 6.777

Mass Data

Gross Vehicle Mass (GVM): 15 000
Gross Combination Mass (GCM): 24 000
Front Axle Mass (GA Front): 5 500
Rear Axle Mass (GAU Rear): 9 500
Gross Vehicle Mass (V): 14 500
Gross Combination Mass (D/T): 24 000
Front Axle Mass (A Front): 5 500
Rear Axle Mass (A Rear): 9 000
Unladen Front Axle Mass (T Front): 2 500
Unladen Rear Axle Mass (T Rear): 1 620
Unladen Mass Total (Tare): 4 120

Fuel Tank

Number: One
Total Capacity: 150 Litre

Dimensions

Wheelbase (WB): 3 510
Overall Length (OL): 5 822
Cab Length (A): 2 052
Overall Width (OW): 2 380
Overall Height (OH): 2 670
Front Overhang (D): 1 312
Rear Overhang (ROH): 1 000
Cab to Rear Axle (CA): 2 800
Minimum Cab Clearance: 150
Minimum Turning Radius: 7 100
Minimum Turning Diameter: 14 200
Ground Clearance: 250
Track - Front: 1 795
Track - Rear: 1 860
Chassis Outer Width: 865
Chassis Inner Width: 680

Cab

Cab Control: Forward Tilt Cab
Seating: Driver + 2 Passengers
Type/Extras: Semi Sleeper with Aircon, Suspension Seat

Steering

Gear Ratio: 20.48:1
Type: Recirculating Ball
Operation: Power Assisted

Clutch

Diameter: 380 mm
Type: Single Plate
Operation: Hydraulic-Air Assisted

Axles

Front Axle: I-section Beam (forged steel)
Rear Axle - Gearing Type: Full Floating - Single Reduction
Rear Axle Ratio: 4.875:1

Brakes

System Type: Full Air - Dual Circuit with ABS
Park/Emergency System: Spring Brakes/Rear Booster

Performance

Gradeability @ V: Max 25%
Geared Road Speed: 120 km/h
